GAMMO GAMma MObile
Radiation measuring probes for mobile use

Product group GAMMO

• GAMMO-TOOL GT1D
• GAMMO-TOOL GT2D
• GAMMO APP
• GAMMO Portal
• GAMMO CASE
• GAMMO Handle

GAMMO – makes you mobile
With GAMMO (mobile gamma radiation measurement detectors), our proven RS04 gamma probes and GSP02 gamma spectrum probes and our latest development COMO (Contamination Monitor) can now be used for mobile applications.

GAMMO – is modular
The sophisticated GAMMO concept behind it allows our users either to use a gamma probe RS04 or to upgrade a stationary detector, which is used for example for a radiation monitoring system, step by step with GAMMO to a mobile detector – without having to buy one new gamma probe RS04.

GAMMO – makes you flexible
In addition, the same components from GAMMO can be used in the same way for our gamma-spectrum detector GSP02 and COMO Contamination Monitor – thanks to their compatibility – that makes you flexible – for many applications.

GAMMO APP – informs and stores
With the GAMMO APP, which runs on any Android device (smartphone, tablet), you will receive the measurement results via Bluetooth from the GTx acoustically, visually and graphically.

• Acoustic when exceeding freely selectable warning thresholds
• Graphical (Diagram View)
• Visually as ambient dose equivalent
• Data export to GAMMO Cloud and GAMMO Portal

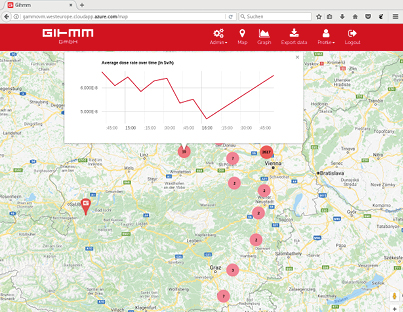

GAMMO Portal – networks, manages, locates and documents
Our GAMMO portal, a WEB application, connects up to 10 stations and shows you time and geo-stamps:

• Map for the current location incl. dose rate and movement data
• Measured values ​​in the diagram view of all stations
• Station administration
• CSV export for reports

Advantages of GAMMO

• Protects your investment because of flexible deployment and modular extensibility
• Works with any standard mobile Android device
• Easy to operate, fast to use, cost-effective
• Varied combination and application possibilities
• Very robust designed for indoor and outdoor use, maintenance-free, low weight
• Up to 16 hours autonomous operation for GT1D and up to 2 weeks GT2D
• Data export in CSV format

GAMMO components

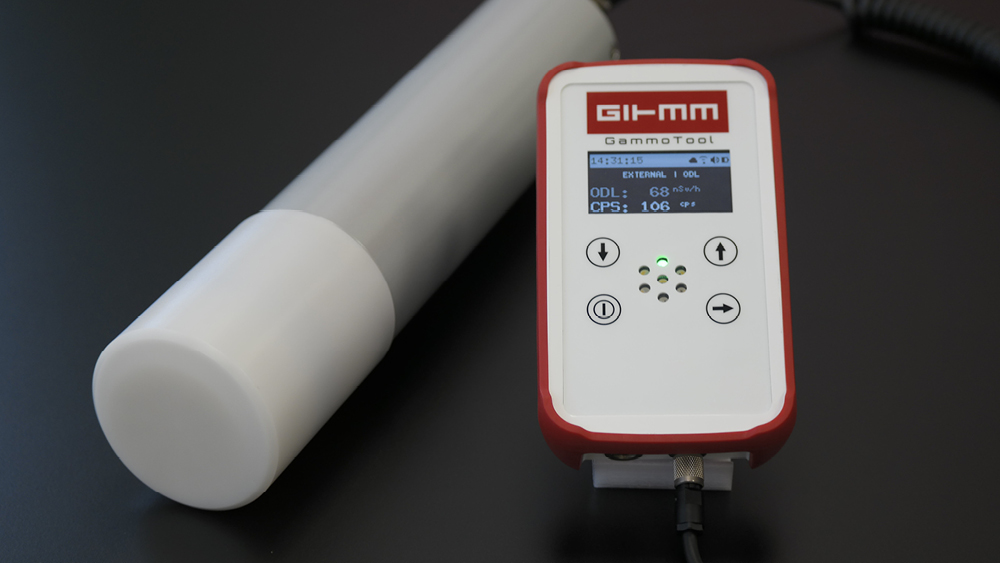

• The Gammo Tool powers the gamma radiation meters and transmits the data via USB to a PC or via Bluetooth to our GAMMO APP and/or stores it on an internal μSD card. Or you send via WIFI the data to a center software solution.
• The Gammo Tool GT2D is equipped with a Geiger-Müller counter tube with a measuring range of up to 40 mSv / h and thus a very compact gamma probe, which fully utilizes the GT.

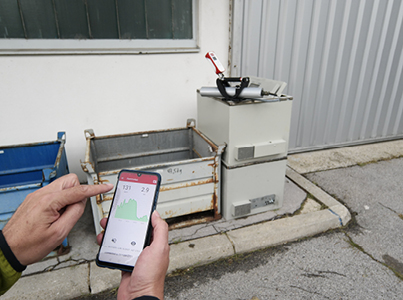

• The GAMMO APP can be installed on any Android mobile device and receives gamma probe data via Bluetooth. The GAMMO APP visually and graphically displays the current radioactive measured value in dose rate and can also warn acoustically if the freely adjustable warning thresholds are exceeded. In addition, the APP sends all relevant data via GSM or WLAN to the GAMMO portal.
• GAMMO Portal is a WEB application that can be installed locally on a WIN10 or Linux computer. It can manage up to 10 gamma stations and documents the dose rate with current location and movement data on the map. However, the measured values can also be viewed graphically in diagram view and used for reports by means of CSV export. GAMMO Portal is also available as a cloud service (monthly billing including all updates).

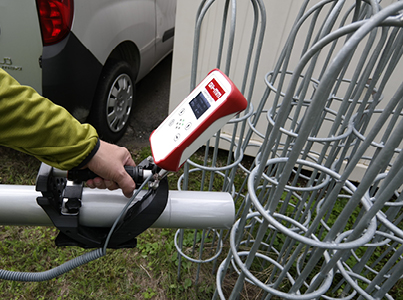

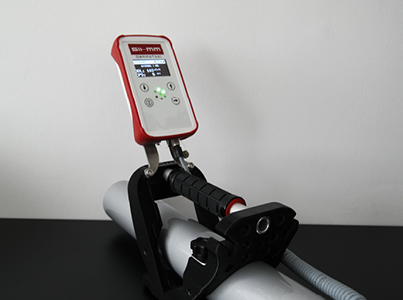

• The GAMMO handle allows one-handed use of the gamma detectors by mounting the probe, mounting device for GT and handle with belt attachment. Easy and quick installation with only 2 screws.
• The GAMMO CASE has space for all components for easy transport and allows measurements during transport (eg in the boot).

Calibration laboratory for radioactivity measuring instruments

We are also a calibration laboratory, which is a certified testing laboratory and can therefore inspect any radioactivity meter.
