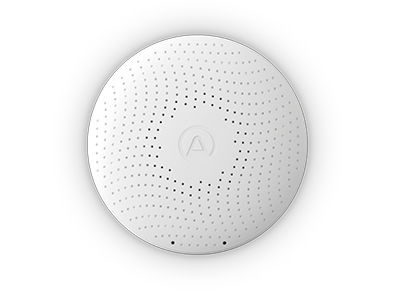

Wave Plus
Smart IAQ monitor with Radon detection
90% of our time ist spent in buildings. Monitoring the Indoor Air Quality (IAQ) is crucial to increase health, energy and productivity. Wave Plus - a smart IAQ monitor including radon detection designed for all populated spaces.
Wave Plus is the perfect solution for homeowners, employers and facility managers to gain full visibility into six indoor air factors; Radon, carbon dioxide (CO2), airborne chemicals (TVOCs), humidity, temperature and air pressure. Wave Plus comes with an app & an online dashboard including advanced analytics options.
Details of the IAQ- and Radon-Monitor Wave Plus
Product Features
- Sensors: Radon, CO2, TVOC, Temp, Humidity & Air Pressure
- Visual indicator: Red/Yellow/Green glow ring
- Long battery life:
- Bluetooth: 16 months
- SmartLink (Hub): 18 months

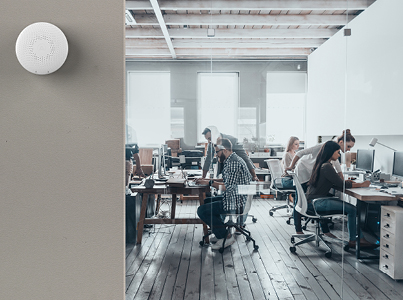

- Supports wall or ceiling mount
- Free mobile app for iOS and Android
- Web dashboard
- Mobile notifications
- Wireless connection (Bluetooth or SmartLink)
IAQ-Sensor-Specifications
- Sensor sampling interval: 5 minutes
- Sensor Resolution:
- Temperature ∓ 0.1°C
- Humidity ∓1%
- Pressure ∓0.15hPa
- Settling time:
- TVOC ~7 days
- CO2 ~7 days
- CO2 details:
- NDIR Sensor (Non-Dispersive Infra-Red)
- Measurement range 400–5000 ppm
- Non condensing 0 – 85%RH
- Optimum Accuracy ±30ppm ±3% within 15 – 35°C and 0 – 80%RH can be reached after multiple settling
- cycles on locations with natural indoor CO2 fluctuations
Radon Specifications
- Radon sampling: Passive diffusion chamber
- Detection method: Alpha spectrometry
- Measurement range: 0 – 9999 Bq/m3
- Accuracy/precision at 200 Bq/m3:
- After 7 days ~ 10 %
- After 2 months ~ 5%
Additional Specifications
- Operational Environment: 4°C to 40°C
- Weight: 219g (with batteries)
- Dimensions: 12 cm (diameter) x 3.6 cm (height)
- Power: 2 AA batteries
- Connectivity: Bluetooth & SmartLink

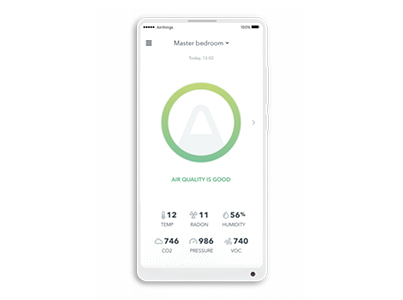

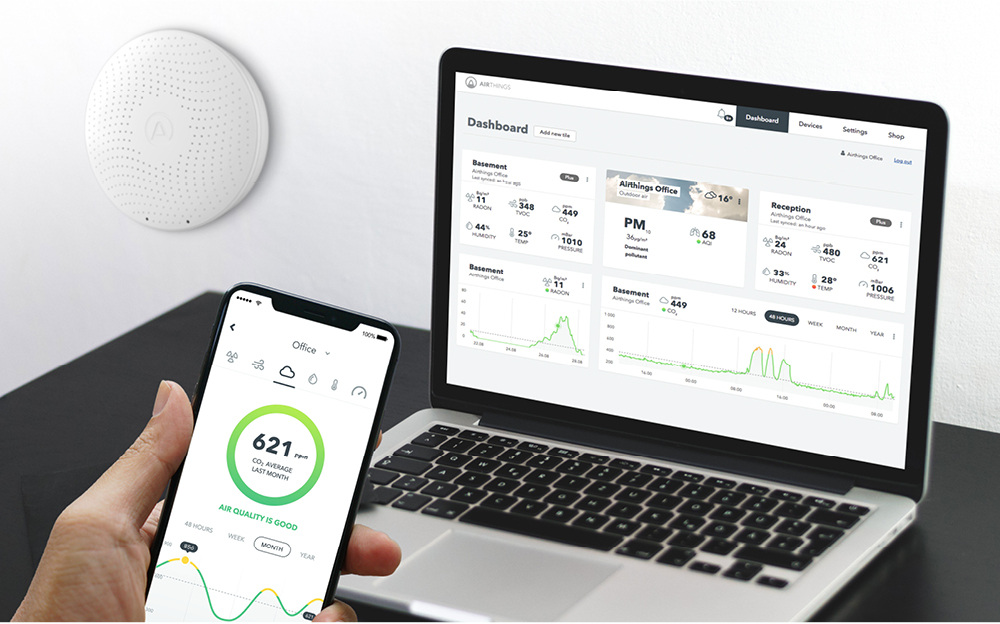

Dashboard
Continuous monitoring of your Indoor Air Quality is necessary to minimize potential health effects. The Airthings App and online dashboard provide a quick and easy solution to view, compare and export data for your particular needs. Users have complete access to interpretations of IAQ data and tips to reduce indoor air hazards, optimize ventilation and save energy.
Easy Installation with APP
To install the Wave Plus simply download the Airthings App, pull the battery tab, mount it to the wall or ceiling, and follow the easy instructions in the app to register your device. In addition, simply wave in front of the device to receive a color-coded visual indicator of the overall air quality.
Here you will find our datasheet with all technical details for download:
