GIHMM GMS wall-mount frames –
robust, proven, well-thought-out
Our GMS wall cabinets are well designed and meet the requirements of a gamma ray monitoring system. The robust design is suitable for outdoor use and has proven itself in practice through its well-thought-out design.
Detailes of the GMS cabinets:
Our cabinets for gamma monitoring stations are available in 2 versions:

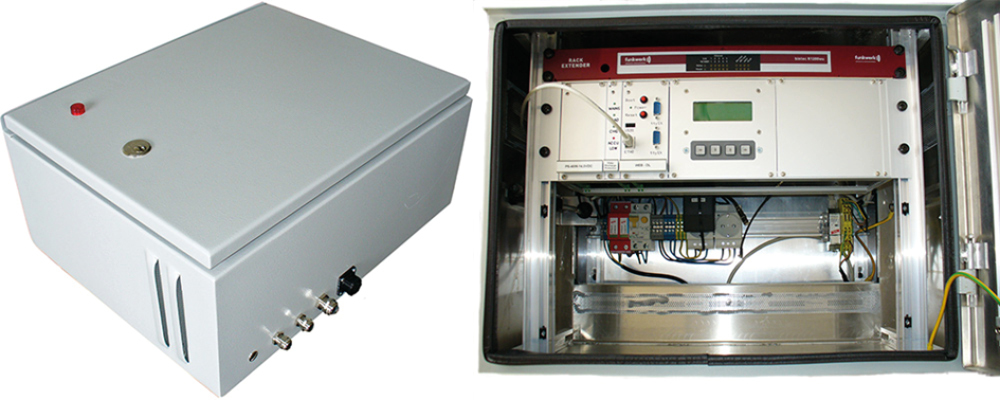

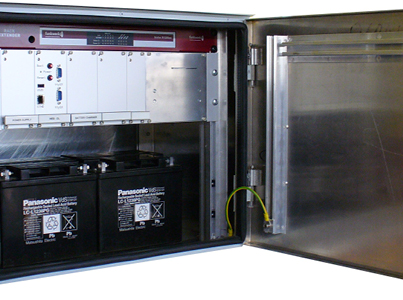

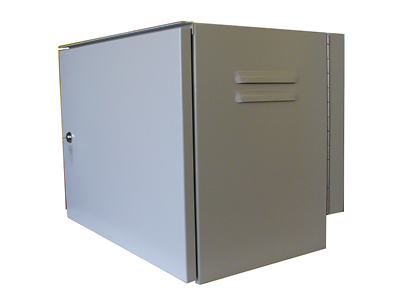

GMS-Standard
- Dimension: L x H x D in mm: 600 x 450 x 350
- Weight (without accumulator incl. electronic equipment): 15kg (approximately)
- Finish: powder-coated aluminium, RAL 7035
- Wall mounted Cabinet (only indoor use)
- Anti-corrosion design (aluminium housing)
- Easy installation, separate mounting of the removable back cover
- Door hinge right or left possible
- Fault-current circuit breaker
- Surge protection system for power grid probe and data communication
- Key lock
- Designed for WEBDL2-L

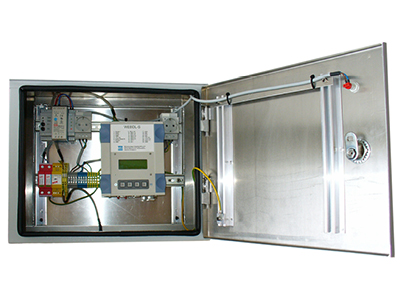

GMS-light
- Dimension: W x D x H in mm: 500 x 400 x 220
- Weight (without accumulator incl. electronic equipment): 10kg (approximately)
- Finish: powder-coated aluminium, RAL 7035
- Wall mounted Cabinet (only indoor use)
- Anti-corrosion design (aluminium housing)
- Plug for RS04 gamma detector
- Drop-out voltage bridge (backup battery)
- 12Ah Battery, deep discharge protection
- Surge protection system for power grid probe and data communication
- Key lock
- Designed for WEBDL2-S
Here you will find our datasheet with all technical details for download:
